• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1941–1943

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7823

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DCH11 DF11 DAF11 DL11

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 90 & 5 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: K41 - Nora, Aron, Heliowatt; Berlin

• Shape
• Portable set > 8 inch (also usable without mains)

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• RADIOBOTE, Österr. (23/2009, S.20 ff, Thema: Truppenbetreungsempfänger)

• Literature/Schematics (1)

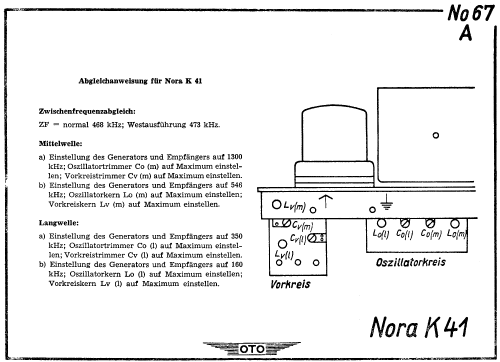

• -- Schematic (OTO-Schaltungen)
