Paganini W18

Paganini W18; Nora; Berlin (ID = 4406) Radio

Paganini W18; Nora; Berlin (ID = 352794) Radio
Paganini W18; Nora; Berlin (ID = 71215) Radio Paganini W18; Nora; Berlin (ID = 2040639) Radio
Paganini W18; Nora; Berlin (ID = 2040643) Radio Paganini W18; Nora; Berlin (ID = 2040640) Radio
Paganini W18; Nora; Berlin (ID = 2040644) Radio Paganini W18; Nora; Berlin (ID = 2040641) Radio
Paganini W18; Nora; Berlin (ID = 2040642) Radio Paganini W18; Nora; Berlin (ID = 30875) Radio
Paganini W18; Nora; Berlin (ID = 71216) Radio Paganini W18; Nora; Berlin (ID = 30874) Radio
Use red slider bar for more.
Paganini W18; Nora; Berlin (ID = 71215) Radio

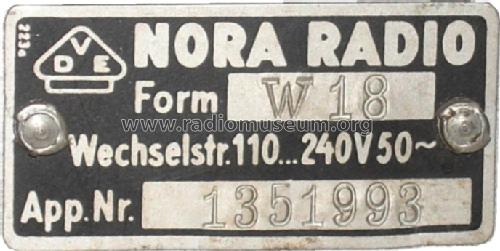

Nora; Berlin: Paganini W18 [Radio] ID = 71215 933x594
Select picture or schematic to display from thumbnails on the right and click for download.
For model Paganini W18, Nora; Berlin

Country:  Germany
Manufacturer / Brand:  Nora; Berlin
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: AF7 AL4 AZ1
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 220, 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Paganini W18 - Nora; Berlin
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 290 x 280 mm / 20.5 x 11.4 x 11 inch
Notes Sparschaltg.
Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Price in first year of sale 142.00 RM
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Fortschritte der Funktechnik und ihrer Grenzgebiete (8 Bände)


All listed radios etc. from Nora; Berlin
Here you find 620 models, 538 with images and 338 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
