Tiefland GW17

Tiefland GW17; Nora; Berlin (ID = 36203) Radio

Tiefland GW17; Nora; Berlin (ID = 36204) Radio

Tiefland GW17; Nora; Berlin (ID = 4354) Radio

Tiefland GW17; Nora; Berlin (ID = 368695) Radio

Tiefland GW17; Nora; Berlin (ID = 368696) Radio

Tiefland GW17; Nora; Berlin (ID = 368698) Radio

Tiefland GW17; Nora; Berlin (ID = 368700) Radio

Tiefland GW17; Nora; Berlin (ID = 368701) Radio
Tiefland GW17; Nora; Berlin (ID = 241799) Radio Tiefland GW17; Nora; Berlin (ID = 241801) Radio
Tiefland GW17; Nora; Berlin (ID = 564) Radio Tiefland GW17; Nora; Berlin (ID = 847771) Radio
Tiefland GW17; Nora; Berlin (ID = 1505163) Radio
Use red slider bar for more.
Tiefland GW17; Nora; Berlin (ID = 241799) Radio
Nora; Berlin: Tiefland GW17 [Radio] ID = 241799 400x242
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tiefland GW17, Nora; Berlin:
eBay Verkäufer buteufel Art. Nr.200013259505

Country:  Germany
Manufacturer / Brand:  Nora; Berlin
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: CF7 CL4 CY1 U920
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110, 125, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Tiefland GW17 - Nora; Berlin
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 280 x 270 mm / 20.5 x 11 x 10.6 inch
Notes 73 Sendernamen 2 Sperrkreise für MW und LW
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Price in first year of sale 170.00 RM
Source of data Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

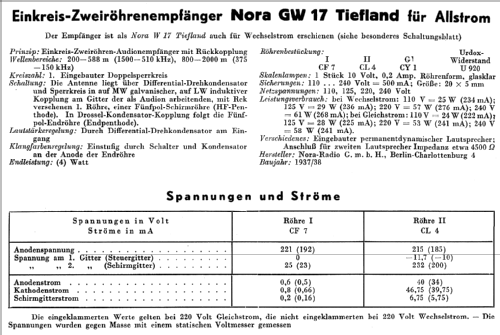

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
