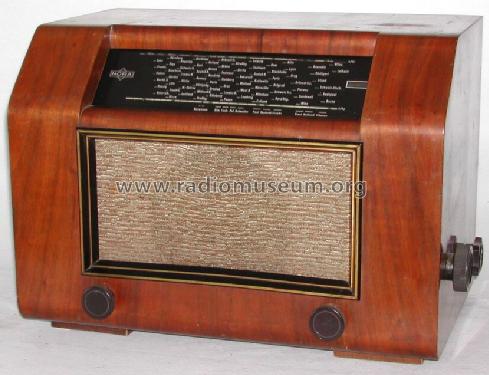

Walküre W27; Nora; Berlin (ID = 22814) Radio

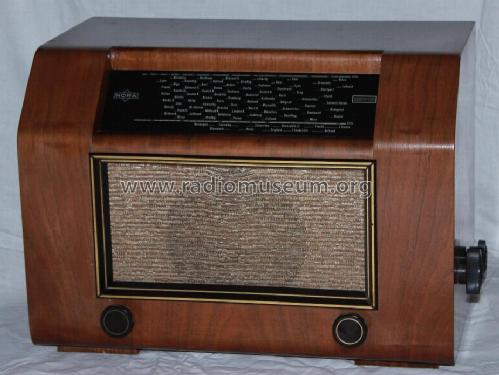

Nora; Berlin: Walküre W27 [Radio] ID = 22814 830x636
Select picture or schematic to display from thumbnails on the right and click for download.
For model Walküre W27, Nora; Berlin

Country:  Germany
Manufacturer / Brand:  Nora; Berlin
Year: 1937–1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: AH1 AF7 AL4 AZ1
Main principle TRF without regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 220, 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Walküre W27 - Nora; Berlin
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 360 x 310 mm / 18.9 x 14.2 x 12.2 inch
Notes

84 Sendernamen

Siehe auch DeTeWe 723 W.

Net weight (2.2 lb = 1 kg) 17 kg / 37 lb 7.1 oz (37.445 lb)
Price in first year of sale 198.00 RM
Source of data Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

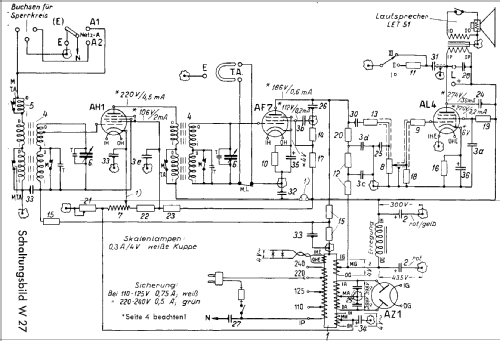

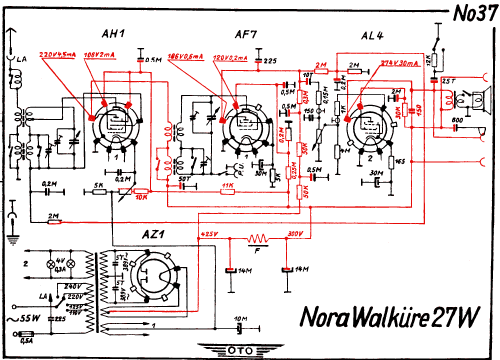

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
