• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7747

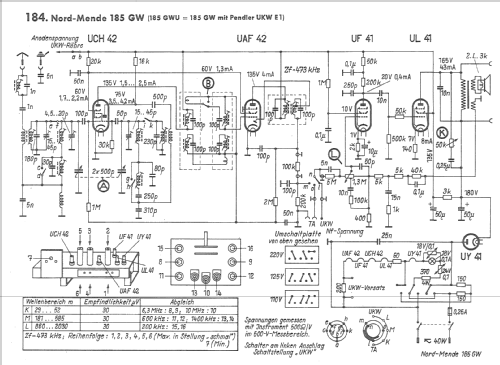

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UAF42 UF41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, Short wave.

• Power type and voltage
• AC/DC-set / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Material
• Bakelite case

• from Radiomuseum.org

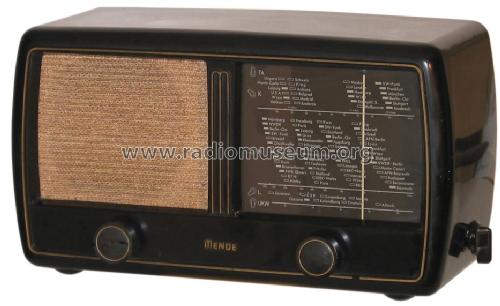

• Model: 185GW - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 450 x 255 x 190 mm / 17.7 x 10 x 7.5 inch

• Notes
• Bandbreite umschaltbar. Achtung, je nach Polung des Netzsteckers führen auch die Buchsen für den Tonabnehmer Netzpotential.

• Net weight (2.2 lb = 1 kg)
• 6.6 kg / 14 lb 8.6 oz (14.537 lb)

• Price in first year of sale
• 219.00 DM

• Source of data
• Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• Funkschau

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
