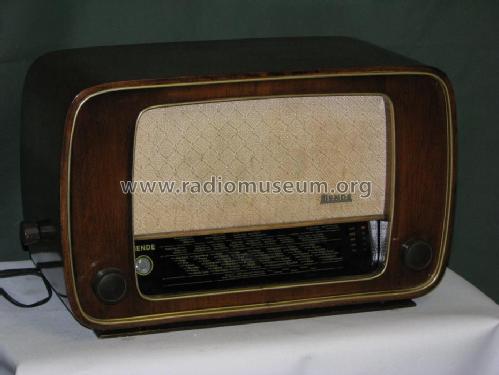

186WU9; Nordmende, (ID = 53434) Radio
Nordmende,: 186WU9 [Radio] ID = 53434 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model 186WU9, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:
Bild ebay

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EF41 EBF80 EL41 EM34 EF42
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 186WU9 - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 515 x 325 x 230 mm / 20.3 x 12.8 x 9.1 inch
Notes variable Bandbreite.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 339.00 DM
Source of data Radiokatalog Band 1, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
