Ambassador Chassis L14/LL14 864.713.00; Nordmende, (ID = 357085) Television
Nordmende,: Ambassador Chassis L14/LL14 864.713.00 [Television] ID = 357085 517x524
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ambassador Chassis L14/LL14 864.713.00, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1963/1964 Category: Television Receiver (TV) or Monitor
Valves / Tubes 21: PCC85 PCC85 EF184 PCC88 PCF801 EF80 EF80 EF183 EF183 EF80 ECH84 PCL84 ECH84 ECC82 EAA91 PCL86 PCL85 PL500 PY88 DY86 A59-11W or A59-12W
Semiconductors (the count is only for transistors) 2: AF139 AF139
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Ambassador Chassis L14/LL14 864.713.00 - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 870 x 860 x 475 mm / 34.3 x 33.9 x 18.7 inch
Notes

VHF/UHF. Technische Daten wie Präsident, jedoch Standgerät mit Jalousie-Schiebetüren.

Net weight (2.2 lb = 1 kg) 39 kg / 85 lb 14.4 oz (85.903 lb)
Price in first year of sale 1'453.00 DM
Source of data Handbuch VDRG 1963/1964

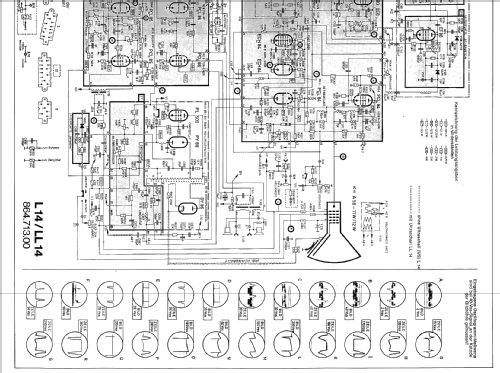

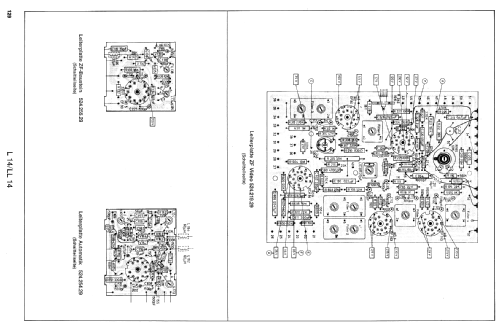

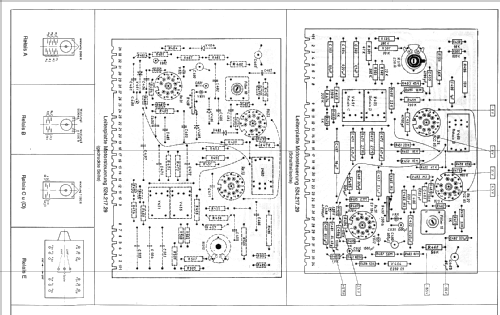

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
