Arabella-Stereo Ch= 1/633

Arabella-Stereo Ch= 1/633; Nordmende, (ID = 1951942) Radio

Arabella-Stereo Ch= 1/633; Nordmende, (ID = 1951930) Radio

Arabella-Stereo Ch= 1/633; Nordmende, (ID = 1241594) Radio

Arabella-Stereo Ch= 1/633; Nordmende, (ID = 1236111) Radio

Arabella-Stereo Ch= 1/633; Nordmende, (ID = 1236112) Radio

Arabella-Stereo Ch= 1/633; Nordmende, (ID = 1236114) Radio

Arabella-Stereo Ch= 1/633; Nordmende, (ID = 1236115) Radio

Arabella-Stereo Ch= 1/633; Nordmende, (ID = 1236116) Radio

Arabella-Stereo Ch= 1/633; Nordmende, (ID = 1236117) Radio

Arabella-Stereo Ch= 1/633; Nordmende, (ID = 1236118) Radio
Use red slider bar for more.
Arabella-Stereo Ch= 1/633; Nordmende, (ID = 1951942) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: ECC85 ECH81 EF89 EBF89 EM84 EAA91 ECC82 ECC83 ECC83 ELL80 ELL80
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 10 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Arabella-Stereo Ch= 1/633 - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Console with any shape - in general

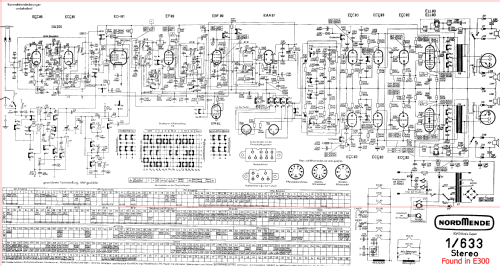

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
