Arabella-Stereo Ch= 7/634

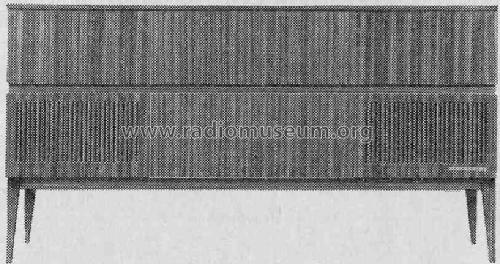

Arabella-Stereo Ch= 7/634; Nordmende, (ID = 996230) Radio Arabella-Stereo Ch= 7/634; Nordmende, (ID = 356173) Radio
Arabella-Stereo Ch= 7/634; Nordmende, (ID = 2621371) Radio Arabella-Stereo Ch= 7/634; Nordmende, (ID = 2621372) Radio
Arabella-Stereo Ch= 7/634; Nordmende, (ID = 2621373) Radio Arabella-Stereo Ch= 7/634; Nordmende, (ID = 2621374) Radio
Arabella-Stereo Ch= 7/634; Nordmende, (ID = 2621375) Radio Arabella-Stereo Ch= 7/634; Nordmende, (ID = 2621611) Radio
Use red slider bar for more.
Arabella-Stereo Ch= 7/634; Nordmende, (ID = 996230) Radio
Nordmende,: Arabella-Stereo Ch= 7/634 [Radio] ID = 996230 933x495
Select picture or schematic to display from thumbnails on the right and click for download.
For model Arabella-Stereo Ch= 7/634, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:
Quelle: Nordmende Programm 1966

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1966–1968 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: ECC85 ECH81 EF89 EBF89 EMM803 EF80 ECC808 ECC808 ECC82 ELL80 ELL80 ECC81
Main principle Superheterodyne (common)
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker 6 Loudspeakers
Power out
from Radiomuseum.org Model: Arabella-Stereo Ch= 7/634 - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1520 x 765 x 385 mm / 59.8 x 30.1 x 15.2 inch
Notes Dioden: BA110, 11× OA81, 2× OA79.
Rundfunk-Chassis = 7/634, Stereo-Decoder eingebaut, Stereo-NF-Verstärker mit 2 Endstufen je 8,5 W;
Phono-Chassis = Dual 1011.
Net weight (2.2 lb = 1 kg) 67 kg / 147 lb 9.2 oz (147.577 lb)
External source of data erb
Source of data Handbuch VDRG 1966/1967
