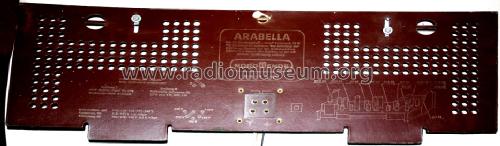

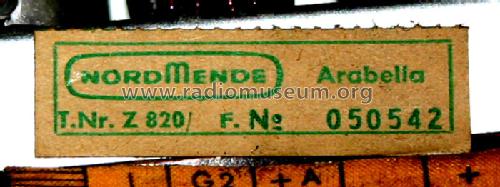

Arabella-Stereo Z820 Ch= 2/633 Rüster/Teak

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23607

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM84 EAA91 ECC82 ECC83 ECC83 ELL80 ELL80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 10 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Arabella-Stereo Z820 Ch= 2/633 [Rüster/Teak] - Nordmende, Norddeutsche Mende-

• Shape

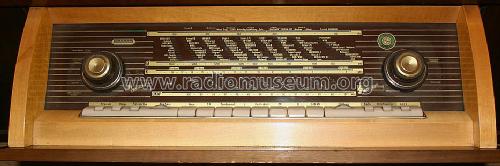

• Console with Push Buttons.

• Dimensions (WHD)
• 1430 x 830 x 410 mm / 56.3 x 32.7 x 16.1 inch

• Notes
• Rundfunk-Chassis = 2/633, Stereo-NF-Verstärker mit 2 Endstufen je 8,5 W;
  Phono-Chassis = Dual 1007.

• Net weight (2.2 lb = 1 kg)
• 62 kg / 136 lb 9 oz (136.564 lb)

• Price in first year of sale
• 975.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61

• Literature/Schematics (1)
• -- Original-techn. papers.
