For model Automatic 971.209.A Ch= Uni 19-A, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:

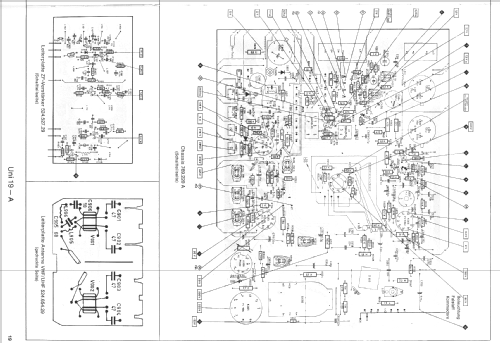

Bild aus Nordmende Service Unterlagen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1969 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 6: PCL86 PCF802 PCL85 PL504 PY88 A61-120W
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Automatic 971.209.A Ch= Uni 19-A - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Nordmende Tischgerät; 61 cm s/w TV mit CCIR FHF/UHF Tuner, 8 Drucktasten 7 VHF/UHF Programmtasten. Ein/Aus Taste Anschluss für Fernbedienung (Helligkeit/Lautstärke vorbereitet.

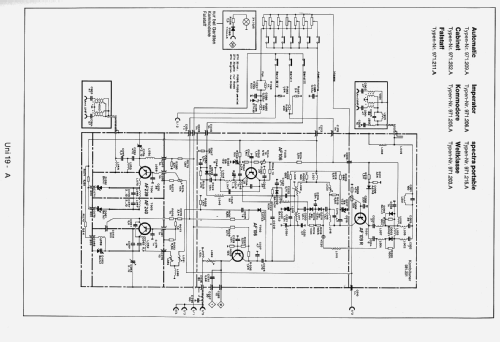

Literature/Schematics (1) Original Nordmende Service Unterlagen

Model page created by Josef Pilz. See "Data change" for further contributors.
