Belmonte 971.222.A Ch= Uni 17

Belmonte 971.222.A Ch= Uni 17; Nordmende, (ID = 935280) Television

Belmonte 971.222.A Ch= Uni 17; Nordmende, (ID = 935281) Television

Belmonte 971.222.A Ch= Uni 17; Nordmende, (ID = 935282) Television

Belmonte 971.222.A Ch= Uni 17; Nordmende, (ID = 935283) Television

Belmonte 971.222.A Ch= Uni 17; Nordmende, (ID = 935284) Television

Belmonte 971.222.A Ch= Uni 17; Nordmende, (ID = 935285) Television

Belmonte 971.222.A Ch= Uni 17; Nordmende, (ID = 935286) Television

Belmonte 971.222.A Ch= Uni 17; Nordmende, (ID = 935287) Television
Belmonte 971.222.A Ch= Uni 17; Nordmende, (ID = 935288) Television
Use red slider bar for more.
Belmonte 971.222.A Ch= Uni 17; Nordmende, (ID = 935288) Television
Nordmende,: Belmonte 971.222.A Ch= Uni 17 [Television] ID = 935288 933x403
Select picture or schematic to display from thumbnails on the right and click for download.
For model Belmonte 971.222.A Ch= Uni 17, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:

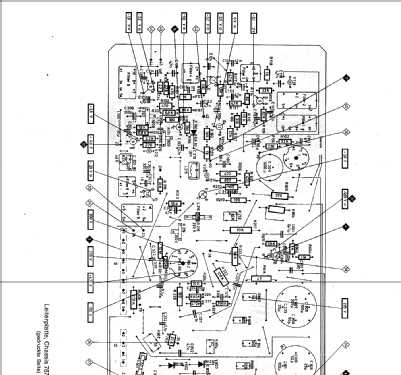

Bild aus Nordmende Service Unterlagen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1968 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 7: PCL86 PC92 PCL85 PL500 or PL504 PY88 DY86 or DY802
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Belmonte 971.222.A Ch= Uni 17 - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Nordmende Tisch TV mit CCIR VHF/UHF Tuner, Anschluss für Fernbedienung vorbereitet Bildröhre nicht dokumentiert.
Literature/Schematics (1) Original Nordmende Service Unterlagen

Model page created by Josef Pilz. See "Data change" for further contributors.
