Carmen C

Carmen C ; Nordmende, (ID = 2500999) Radio Carmen C ; Nordmende, (ID = 2501003) Radio

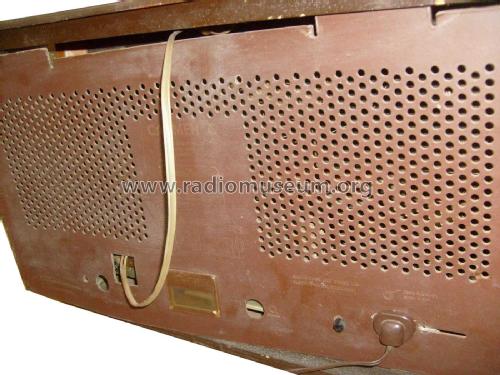

Carmen C ; Nordmende, (ID = 2501008) Radio Carmen C ; Nordmende, (ID = 2501005) Radio
Carmen C ; Nordmende, (ID = 2502537) Radio Carmen C ; Nordmende, (ID = 2502538) Radio
Carmen C ; Nordmende, (ID = 2502541) Radio Carmen C ; Nordmende, (ID = 2502666) Radio
Carmen C ; Nordmende, (ID = 2502543) Radio Carmen C ; Nordmende, (ID = 2502539) Radio
Use red slider bar for more.

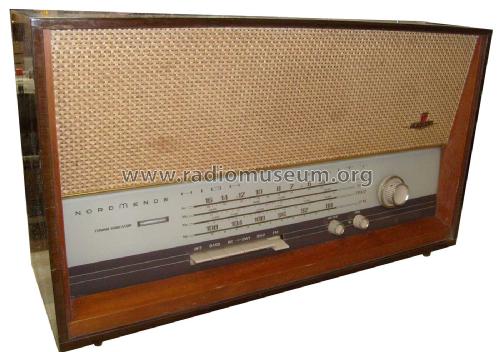

Carmen C ; Nordmende, (ID = 2500999) Radio
Nordmende,: Carmen C [Radio] ID = 2500999 1400x987
Select picture or schematic to display from thumbnails on the right and click for download.
For model Carmen C, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:
Ebay.com 124393261926 seller radio.parts.and.more

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1965/1966 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF89 ECL86 EM84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 110 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Carmen C - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 610 x 350 x 210 mm / 24 x 13.8 x 8.3 inch
Notes

Nordmende Carmen C is an export model for the US market with 4 wave bands: Broadcast (BC, MW), two SW bands and FM from 88 to 108 MHz.

Compare with domestic model Carmen I180.

Model page created by Richard Winter. See "Data change" for further contributors.
