CARRERA de Luxe 974.195.A

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1973/1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29258

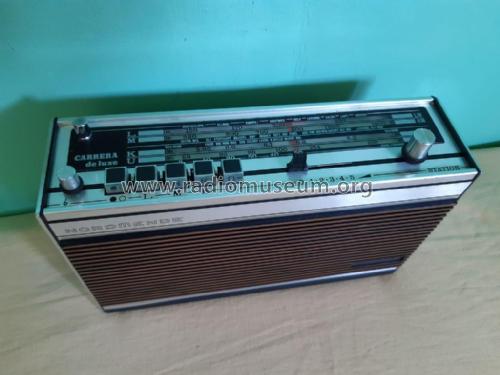

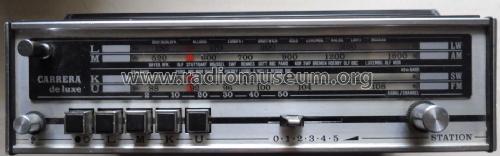

• Picture

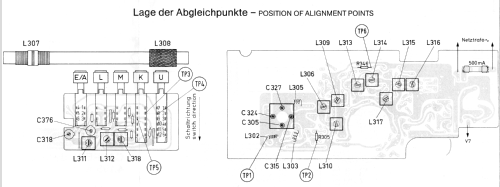

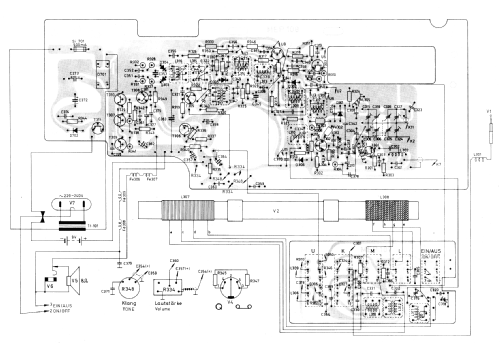

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• 2SC535 2SC461 CDG00 2SC460 CDG00 M193 2SC460 1N60 1N60 CD0000 CS1312 CS1312 BT1 AC187 AC188 2SB364

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / C: 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: CARRERA de Luxe 974.195.A - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 250 x 150 x 75 mm / 9.8 x 5.9 x 3 inch

• Notes
• Bei Netzbetrieb beträgt die Ausgangsleistung 1 W.

  UKW: 87,5 - 108 MHz
  KW: 5950 - 6300 kHz
  MW: 510 - 1640 kHz
  LW: 145 - 260 kHz


• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1973
