• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1969/1970

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 190780

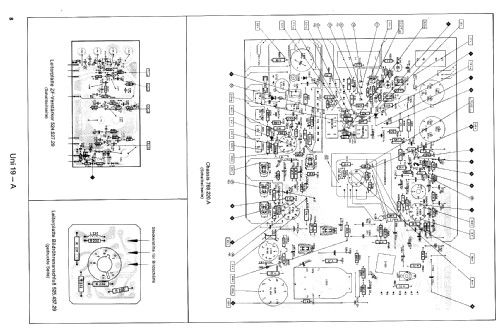

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• PCL86 PCF802 PCL85 PL504 PY88 A47-28W

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Colonel 20 970.212A Ch= Uni 19-A - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 565 x 415 x 340 mm / 22.2 x 16.3 x 13.4 inch

• Notes
• Nordmende Portable; 47 cm s/w TV mit CCIR VHF/UHF Tuner, 7 Drucktasten 6 VHF/UHF Programmtasten, Ein/Aus Taste, Anschluss für Fernbedienung (Lautstärke, Helligkeit) vorbereitet

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Literature/Schematics (1)
• Original Nordmende Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
