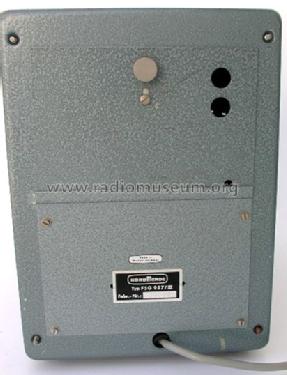

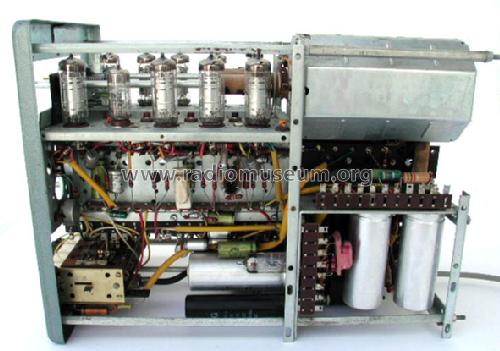

Fernseh Signal Generator FSG957/III (FSG 957/3)

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1960 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 80887

• Picture
• Schematics

Previous Next

Previous Next

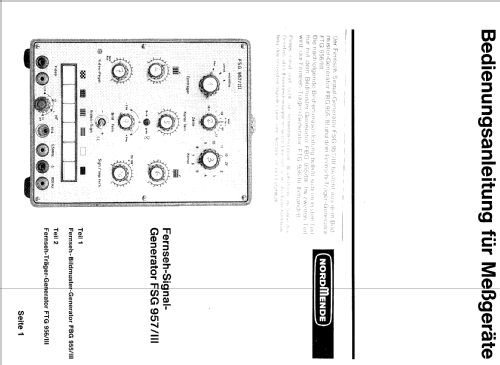

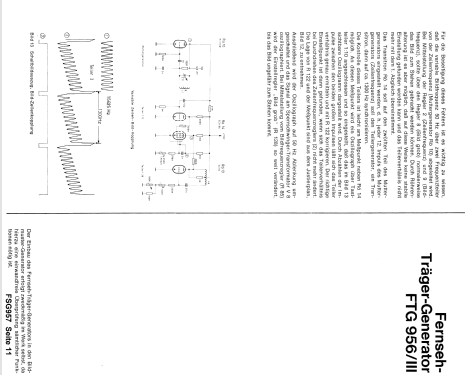

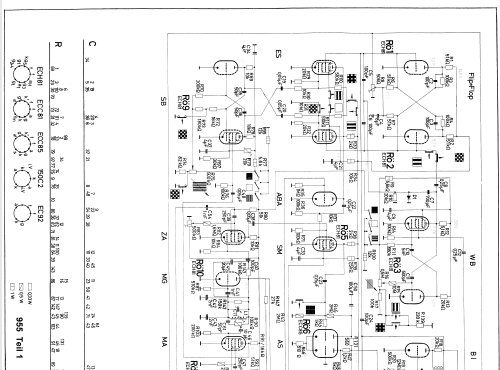

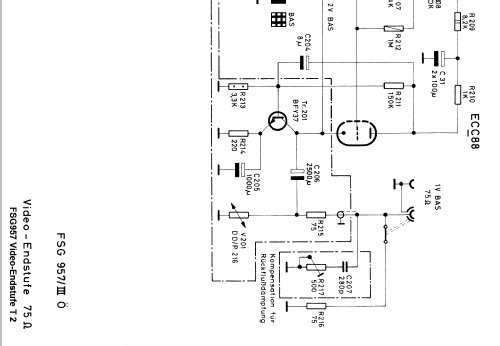

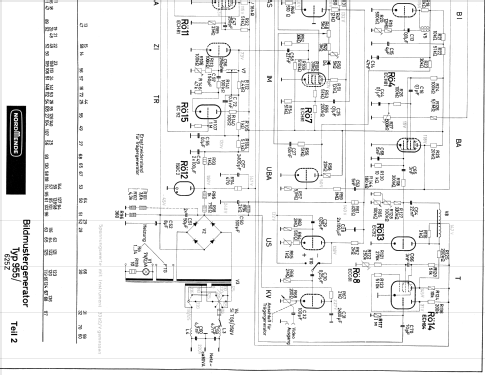

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• ECC85 ECC85 EF80 EC92 150C2

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 235 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Fernseh Signal Generator FSG957/III - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 200 x 270 x 340 mm / 7.9 x 10.6 x 13.4 inch

• Notes
• Fernsehkanäle 2-12,ZF 5,5MHz, Audio 800Hz. Röhren sind nur teilweise genannt.

• Net weight (2.2 lb = 1 kg)
• 15.5 kg / 34 lb 2.3 oz (34.141 lb)

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.

• Other Models

• Here you find 1746 models, 1639 with images and 1263 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
