Minibox Ch= 0/602; Nordmende, (ID = 263674) Radio

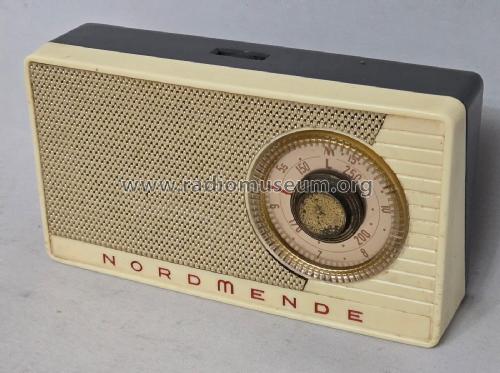

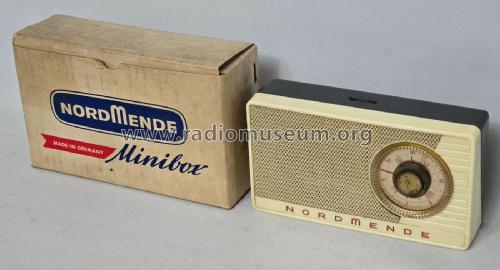

Nordmende,: Minibox Ch= 0/602 [Radio] ID = 263674 933x556
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minibox Ch= 0/602, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC613 OC612 OC612 OC71 OC72 OC72 OA70
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Minibox Ch= 0/602 - Nordmende, Norddeutsche Mende-
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 155 x 85 x 46 mm / 6.1 x 3.3 x 1.8 inch
Notes

Ausführung: Kunststoff-Gehäuse, zweifarbig in verschiedenen Kombinationen. Lautsprecherfront messingfarben geprägt, Skala goldfarbig, Abstimmscheibe mit Messing-Mittelteil.

Siehe auch Nordmende Minibox 1/602 mit Frontgestaltung in Nickel/Chrom.

Das VDRG-Handbuch 1959/60 gibt irrtümlich Pressstoff als Gehäusematerial an.
Im Handbuch RFP 1959/60 wird dagegen Kunststoff genannt.

Net weight (2.2 lb = 1 kg) 0.6 kg / 1 lb 5.1 oz (1.322 lb)
Price in first year of sale 125.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1959/60 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch für Rundfunk Fernsehen Phono 1959/60 (RFP)
Literature/Schematics (1) -- Original-techn. papers.
