HiFi Amplifier PA1100 979.151H

HiFi Amplifier PA1100 979.151H; Nordmende, (ID = 300790) Ampl/Mixer HiFi Amplifier PA1100 979.151H; Nordmende, (ID = 300791) Ampl/Mixer
HiFi Amplifier PA1100 979.151H; Nordmende, (ID = 2064300) Ampl/Mixer HiFi Amplifier PA1100 979.151H; Nordmende, (ID = 2064301) Ampl/Mixer
HiFi Amplifier PA1100 979.151H; Nordmende, (ID = 2064303) Ampl/Mixer HiFi Amplifier PA1100 979.151H; Nordmende, (ID = 2064304) Ampl/Mixer
HiFi Amplifier PA1100 979.151H; Nordmende, (ID = 2064305) Ampl/Mixer HiFi Amplifier PA1100 979.151H; Nordmende, (ID = 2064306) Ampl/Mixer
HiFi Amplifier PA1100 979.151H; Nordmende, (ID = 2064307) Ampl/Mixer HiFi Amplifier PA1100 979.151H; Nordmende, (ID = 2064308) Ampl/Mixer
Use red slider bar for more.
HiFi Amplifier PA1100 979.151H; Nordmende, (ID = 300790) Ampl/Mixer

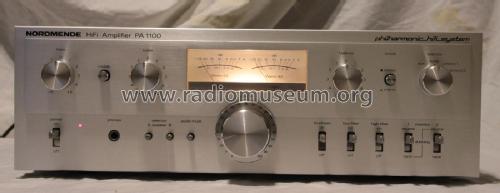

Nordmende,: HiFi Amplifier PA1100 979.151H [Ampl/Mixer] ID = 300790 900x456
Select picture or schematic to display from thumbnails on the right and click for download.
For model HiFi Amplifier PA1100 979.151H, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1978 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 22:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (unknown quality)
from Radiomuseum.org Model: HiFi Amplifier PA1100 979.151H - Nordmende, Norddeutsche Mende-
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 440 x 145 x 320 mm / 17.3 x 5.7 x 12.6 inch
Notes Stereo Vollverstärker mit 2x 30 Watt Sinus an 8 Ohm.
Gesamtklirrfaktor: 0,1 % / 35 Watt, Frequenzgang: 20 - 25.000 Hz, Signalrauschabstand: 62 dB Phono / 76 dB Hochpegel,
Stereokanaltrennung: 60 dB. Bass-, Treble- und Loudness-Control. High- und Low-FIlter. 2x VU-Meter.
Aus der Serie "Philharmonic-HiFi-System". Eingänge: 2× Phono, 2× Tape, Tuner und Aux. 4 LS-Buchsen. Gerät war auch in SCHWARZ erhältlich.
Net weight (2.2 lb = 1 kg) 7.8 kg / 17 lb 2.9 oz (17.181 lb)
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by Peter Böhm. See "Data change" for further contributors.
