Rigoletto Ch= 300 5 Tasten, EM34

Rigoletto Ch= 300; Nordmende, (ID = 1014661) Radio

Rigoletto Ch= 300; Nordmende, (ID = 1015094) Radio

Rigoletto Ch= 300; Nordmende, (ID = 1015095) Radio

Rigoletto Ch= 300; Nordmende, (ID = 1014962) Radio

Rigoletto Ch= 300; Nordmende, (ID = 1014961) Radio

Rigoletto Ch= 300; Nordmende, (ID = 1014959) Radio

Rigoletto Ch= 300; Nordmende, (ID = 1014960) Radio
Rigoletto Ch= 300; Nordmende, (ID = 2073192) Radio Rigoletto Ch= 300; Nordmende, (ID = 1014623) Radio
Rigoletto Ch= 300; Nordmende, (ID = 1015035) Radio Rigoletto Ch= 300; Nordmende, (ID = 1015033) Radio
Rigoletto Ch= 300; Nordmende, (ID = 1015038) Radio Rigoletto Ch= 300; Nordmende, (ID = 1014640) Radio
Rigoletto Ch= 300; Nordmende, (ID = 1014641) Radio Rigoletto Ch= 300; Nordmende, (ID = 1346552) Radio
Rigoletto Ch= 300; Nordmende, (ID = 1346554) Radio Rigoletto Ch= 300; Nordmende, (ID = 1346555) Radio
Use red slider bar for more.
Rigoletto Ch= 300; Nordmende, (ID = 2073192) Radio
Nordmende,: Rigoletto Ch= 300 [Radio] ID = 2073192 933x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rigoletto Ch= 300 5 Tasten, EM34, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EC92 EC92 ECH81 EF85 EM34 EABC80 EL41
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details

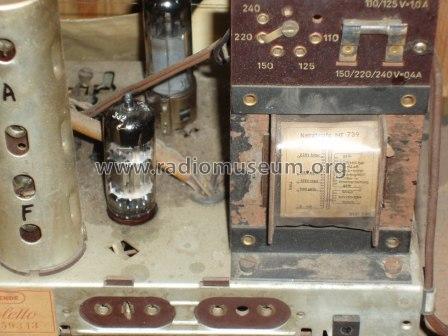

Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Rigoletto Ch= 300 [5 Tasten, EM34] - Nordmende, Norddeutsche Mende-
Material Wooden case

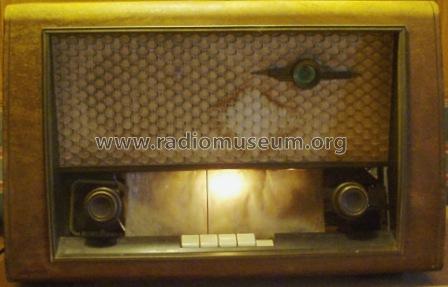

Shape Tablemodel with Push Buttons.

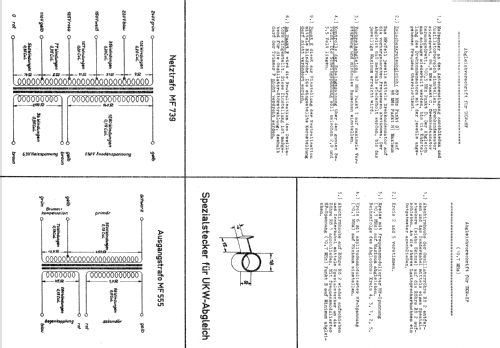

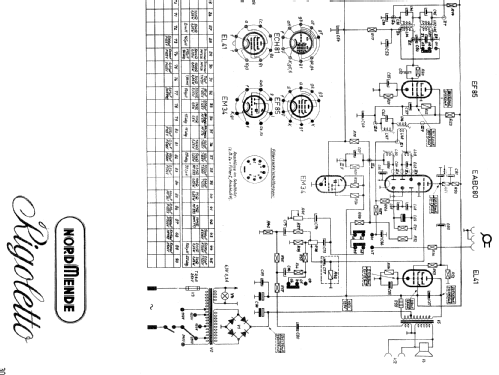

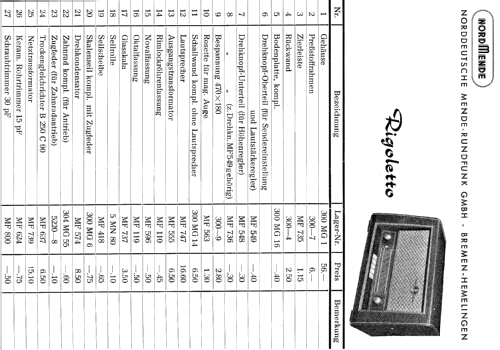

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
