• Year
  • 1949/1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 7768

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 473 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Ready for FM, has Broadcast, Long Wave, several Short Wave.
  • Power type and voltage
  • AC/DC-set / 110 - 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

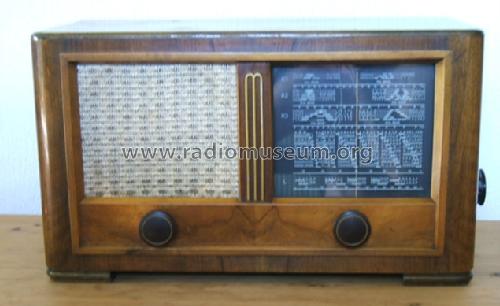

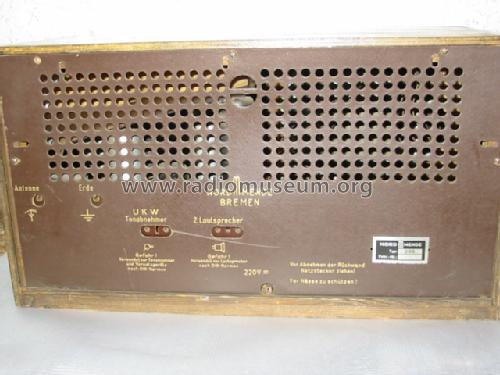

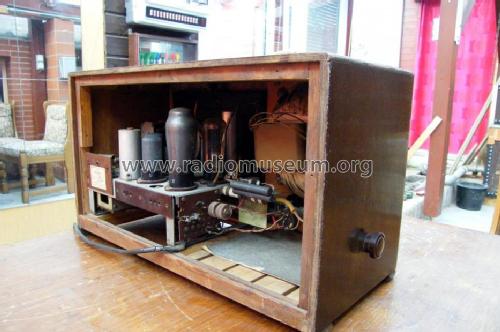

  • Model: Super 398GW - Nordmende, Norddeutsche Mende-
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 490 x 280 x 240 mm / 19.3 x 11 x 9.4 inch
  • Notes
  • drei KW-Bereiche. Wechselstrombetrieb auch mit nachrüstbarem Spartrafo möglich.
  • Net weight (2.2 lb = 1 kg)
  • 9.5 kg / 20 lb 14.8 oz (20.925 lb)
  • Price in first year of sale
  • 398.00 DM

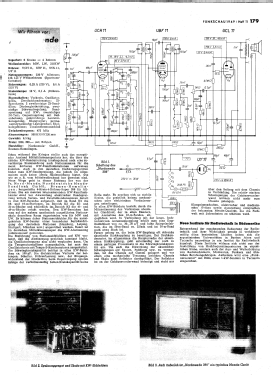

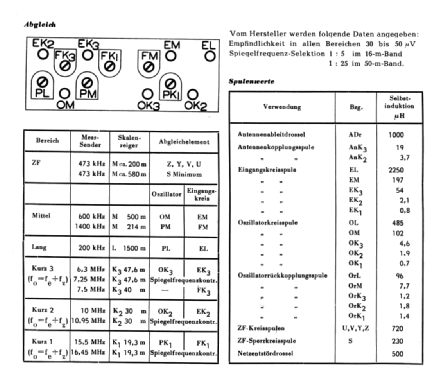

  • Circuit diagram reference
  • Lange-Nowisch
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
