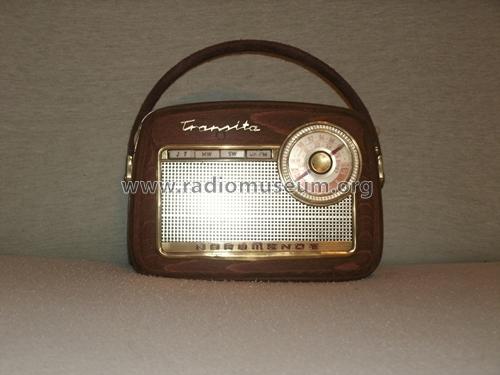

Transita K E031 Ch= 1/603K

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7724

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• OC615 OC615 OC614 AF105 AF105 OC71 OC71 OC74 OC74 OA160 OA172 OA172

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 3R12: 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1 W (max.)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Transita K E031 Ch= 1/603K - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 225 x 168 x 82 mm / 8.9 x 6.6 x 3.2 inch

• Notes

• Rundliches, geschwungenes Gehäuse! Alle späteren Transitas sind seitlich und oben gerade.

  Siehe auch Nachfolger Transita K E031 Ch= 1/603-1K im graden Gehäuse.

  Typbezeichnung ist E031, der Buchstabe "F.-" (auch F.-Nr.) bedeutet Fertigungsnummer.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Price in first year of sale
• 238.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61 / Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 1746 models, 1639 with images and 1263 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
