• Country
• Canada

• Manufacturer / Brand
• Noresco Mfg. Ltd.; Toronto

• Year
• 1970 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 234967

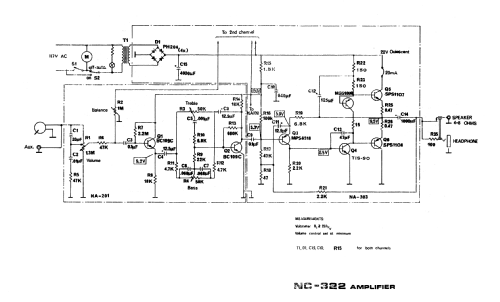

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 34 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: NC-322 - Noresco Mfg. Ltd.; Toronto

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 16.75 x 7.75 x 15 inch / 425 x 197 x 381 mm

• Notes

• Noresco NC-322 with Dual 1210 phono chassis and Dual ceramic pick-up. Frequency response 25 - 40,000 Hz.

  Cabinet in walnut or teak.

• Net weight (2.2 lb = 1 kg)
• 17 lb (17 lb 0 oz) / 7.718 kg

• Mentioned in
• - - Manufacturers Literature
