Betriebs-Leistungsmesser 33 W 3303
Use red slider bar for more.

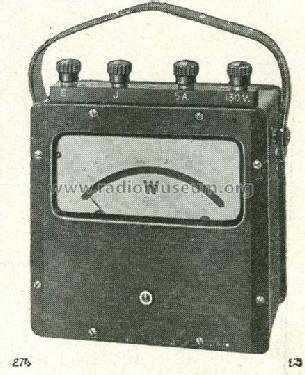

NORMA Messtechnik: Betriebs-Leistungsmesser 33 W 3303 [Equipment] ID = 456972 439x539
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1929 | Category: Service- or Lab Equipment |
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | - - No sound reproduction output. |
| Power out | |
| from Radiomuseum.org | Model: Betriebs-Leistungsmesser 33 W 3303 - NORMA Messtechnik GmbH, Wien |
| Material | Wooden case |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 150 x 150 x 85 mm / 5.9 x 5.9 x 3.3 inch |
| Notes | AC/DC, 5 A, 130 V. Meßwerk: Elektrodynamisch, eisengeschirmt. Länge des Skalenbogens zirka 110 mm. Vorwiderstände: 260, 390, 520 V (0,6 -1,3 kg, 108-184 pengö). Nullpunktwiderstände: NW30, -31, -32, 1-1.6 kg, 123-208 pengö. Tragetasche: 46 pengö. |
| Net weight (2.2 lb = 1 kg) | 1.6 kg / 3 lb 8.4 oz (3.524 lb) |
| Price in first year of sale | 484.00 pengö |
| Source of data | -- Original prospect or advert |
Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
