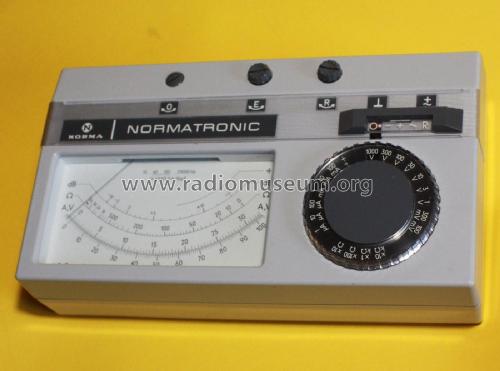

For model Normatronic 1811GB4D/E, NORMA Messtechnik GmbH, Wien

Country:  Austria
Manufacturer / Brand:  NORMA Messtechnik GmbH, Wien
Year: 1975 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 2× 9 & 1× 1,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Normatronic 1811GB4D/E - NORMA Messtechnik GmbH, Wien
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 190 x 107 x 55 mm / 7.5 x 4.2 x 2.2 inch
Notes 42 Meßbereiche. 100 mV...1000 Volt (-/~). 1 uA...100 mA (-/~). 20 Ohm...100 MOhm.
Pegel: -40...+52 dB. Eingangswiderstand 11,6 MOhm.
Frequenzbereich bis 20 kHz, mit HF-Tastkopf bis 30 MHz.
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Source of data - - Data from my own collection
Mentioned in Funkschau (11/1975, S. 38, 39, 40, 41, 42)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
