Spannungsmesser 26 mV 2611

Spannungsmesser 26 mV 2611; NORMA Messtechnik (ID = 456962) Equipment
Use red slider bar for more.
Spannungsmesser 26 mV 2611; NORMA Messtechnik (ID = 456962) Equipment

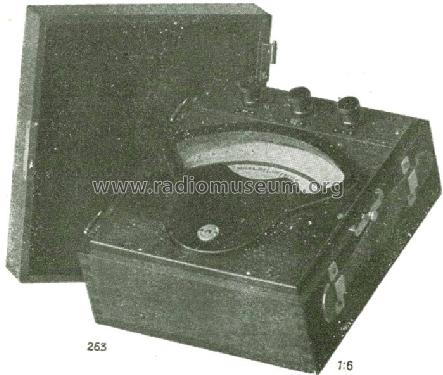

NORMA Messtechnik: Spannungsmesser 26 mV 2611 [Equipment] ID = 456962 700x592
Select picture or schematic to display from thumbnails on the right and click for download.
For model Spannungsmesser 26 mV 2611, NORMA Messtechnik GmbH, Wien:
Original prospekt, Engel Károly Budapest,1929.

Country:  Austria
Manufacturer / Brand:  NORMA Messtechnik GmbH, Wien
Year: 1929 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Spannungsmesser 26 mV 2611 - NORMA Messtechnik GmbH, Wien
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 200 x 240 x 130 mm / 7.9 x 9.4 x 5.1 inch
Notes AC, Drehspul-Instrument und Thermoumformer. 50-500 mV, Innenwiderstand: etwa 10 Ohm, Eigenverbrauch: rund 50 mA.
Net weight (2.2 lb = 1 kg) 4.2 kg / 9 lb 4 oz (9.251 lb)
Price in first year of sale 883.00 pengö
Source of data -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from NORMA Messtechnik GmbH, Wien
Here you find 271 models, 270 with images and 23 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
