Universal-Ohmmeter 63 6304

Universal-Ohmmeter 63 6304; NORMA Messtechnik (ID = 846821) Equipment

Universal-Ohmmeter 63 6304; NORMA Messtechnik (ID = 846822) Equipment

Universal-Ohmmeter 63 6304; NORMA Messtechnik (ID = 846823) Equipment

Universal-Ohmmeter 63 6304; NORMA Messtechnik (ID = 846824) Equipment

Universal-Ohmmeter 63 6304; NORMA Messtechnik (ID = 846825) Equipment
Universal-Ohmmeter 63 6304; NORMA Messtechnik (ID = 456370) Equipment Universal-Ohmmeter 63 6304; NORMA Messtechnik (ID = 846820) Equipment
Use red slider bar for more.
Universal-Ohmmeter 63 6304; NORMA Messtechnik (ID = 456370) Equipment

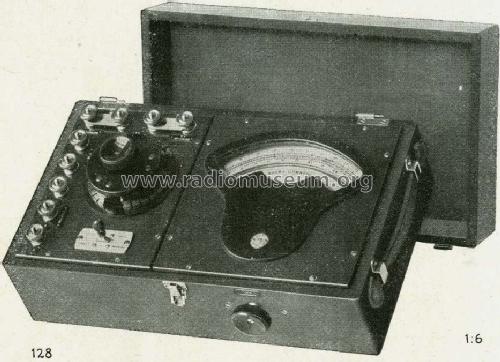

NORMA Messtechnik: Universal-Ohmmeter 63 6304 [Equipment] ID = 456370 933x677
Select picture or schematic to display from thumbnails on the right and click for download.
For model Universal-Ohmmeter 63 6304, NORMA Messtechnik GmbH, Wien:

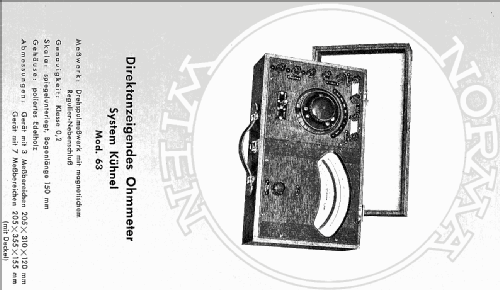

Original prospekt, Engel Károly, Budapest, 1929.

Country:  Austria
Manufacturer / Brand:  NORMA Messtechnik GmbH, Wien
Year: 1929 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 4 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Universal-Ohmmeter 63 6304 - NORMA Messtechnik GmbH, Wien
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 360 x 210 x 120 mm / 14.2 x 8.3 x 4.7 inch
Notes 0,01, 0,1, 1, 10, 100, 1000 Ω. Strom für Vollausschlag 0,3 A. Länge des Skalenbogens: 150 mm.
Zubehör: Akkumulator 4 V/3 Ah Kapazität (2 kg, 31 Pengö).
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 4'570.00 ATS
Source of data -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from NORMA Messtechnik GmbH, Wien
Here you find 271 models, 270 with images and 23 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
