Norelco L2X97T

Norelco L2X97T ; Norelco, North (ID = 174365) Radio

Norelco L2X97T ; Norelco, North (ID = 522193) Radio

Norelco L2X97T ; Norelco, North (ID = 522194) Radio

Norelco L2X97T ; Norelco, North (ID = 522195) Radio

Norelco L2X97T ; Norelco, North (ID = 522196) Radio
Norelco L2X97T ; Norelco, North (ID = 1613042) Radio Norelco L2X97T ; Norelco, North (ID = 1613041) Radio
Norelco L2X97T ; Norelco, North (ID = 1613043) Radio Norelco L2X97T ; Norelco, North (ID = 1613044) Radio
Norelco L2X97T ; Norelco, North (ID = 1613045) Radio Norelco L2X97T ; Norelco, North (ID = 1613046) Radio
Norelco L2X97T ; Norelco, North (ID = 1613047) Radio Norelco L2X97T ; Norelco, North (ID = 522192) Radio
Use red slider bar for more.
Norelco L2X97T ; Norelco, North (ID = 1613042) Radio

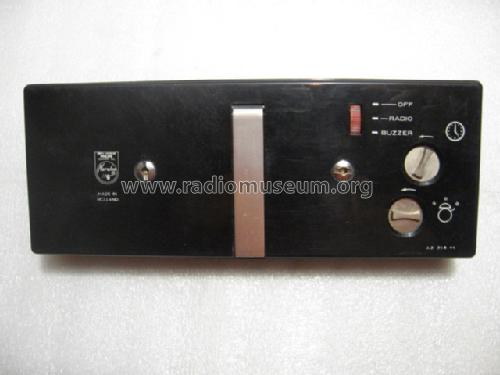

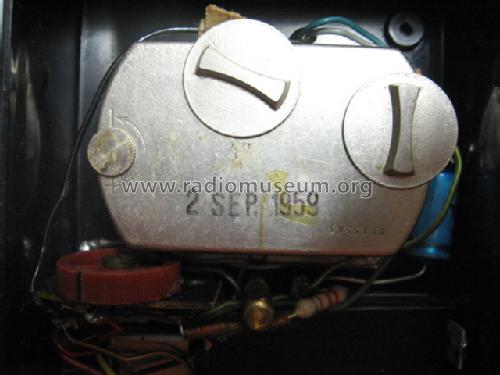

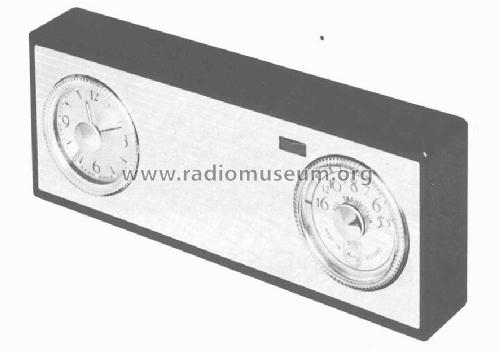

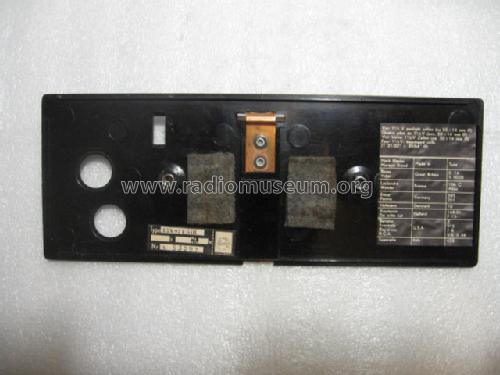

Norelco, North: Norelco L2X97T [Radio] ID = 1613042 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Norelco L2X97T, Norelco, North American Philips Co. Inc.; Dobbs Ferry and New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Norelco, North American Philips Co. Inc.; Dobbs Ferry and New York, NY
Brand

Norelco
Year: 1959 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 OC71 OC71 OC72 OC72
Main principle Superheterodyne (common); ZF/IF 452 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
Power out
from Radiomuseum.org Model: Norelco L2X97T - Norelco, North American
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 90 x 38 mm / 9.1 x 3.5 x 1.5 inch
Notes

Probably identically constructed with Philips Jeanette L2X97T.

Built-in table stand.

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Circuit diagram reference Beitman Radio Diagrams Vol. 23, 1963
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 503 folder 14 date 10-60)

Model page created by Egon Penker. See "Data change" for further contributors.
