Tone Keyer 102 1

Northern Radio Co.; New York

Dati

Forum

Immagini

Collezioni

Paese
USA (Stati Uniti d'America)

Produttore / Marca
Northern Radio Co.; New York

Anno
1951

Categoria
Altro apparecchio amatoriale (ma non tasto Morse)

Radiomuseum.org ID
119247

Immagini
Schemi

Tone Keyer 102; Northern Radio Co.; (ID = 3012998) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3012999) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013000) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013001) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013002) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013003) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013004) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013005) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013006) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013007) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013008) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013009) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013010) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013011) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013012) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013013) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013014) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013015) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013016) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013017) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013018) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3013019) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

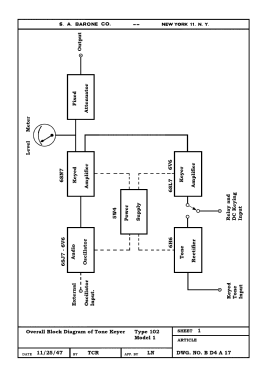

Tone Keyer 102; Northern Radio Co.; (ID = 3013020) Amateur-D — Northern Radio Co.; Tone Keyer 102 (3)

Tone Keyer 102; Northern Radio Co.; (ID = 3012969) Amateur-D — Northern Radio Co.; Tone Keyer 102 (2)
2001 ebay 1241613401 unknown

Tone Keyer 102; Northern Radio Co.; (ID = 3012972) Amateur-D — Northern Radio Co.; Tone Keyer 102 (2)
2001 ebay 1241613401 unknown

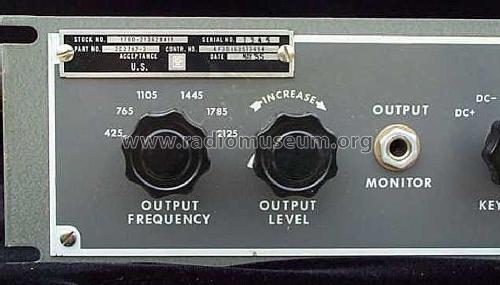

Tone Keyer 102; Northern Radio Co.; (ID = 3012976) Amateur-D — Northern Radio Co.; Tone Keyer 102 (2)
2001 ebay 1241613401 unknown

Tone Keyer 102; Northern Radio Co.; (ID = 3012978) Amateur-D — Northern Radio Co.; Tone Keyer 102 (2)
2001 ebay 1241613401 unknown

Tone Keyer 102; Northern Radio Co.; (ID = 3012979) Amateur-D — Northern Radio Co.; Tone Keyer 102 (2)
2001 ebay 1241613401 unknown

Clicca sulla miniatura dello schema per richiederlo come documento gratuito.

Specifiche tecniche

Numero di tubi
7

Valvole
6SJ7 6V6GT 6SN7 6SL7GT 5W4 or 5Y3GT 6H6 6V6GT

Gamme d'onda
- senza

Tensioni di funzionamento
Alimentazione a corrente alternata (CA) / 110; 220 Volt

Altoparlante
- Per cuffie o amplificatori esterni

Materiali
Mobile di metallo

Radiomuseum.org
Modello: Tone Keyer 102 [1] - Northern Radio Co.; New York

Forma
Chassis o in scatola da montaggio

Dimensioni (LxAxP)
19 x 3.5 x 13.5 inch / 483 x 89 x 343 mm

Annotazioni
Used in communication systems for remote keying of a radio transmitter, or teleprinter machine. The intelligence pulses amplitude modulate any one of six audio tones (425, 765, 1105, 1445, 1785 or 2125 cycles), 2,5" AC Voltmeter.

Fonte dei dati
-- Collector info (Sammler)

Letteratura / Schemi (1)
-- Schematic

Autore
Modello inviato da un iscritto da A. Utilizzare "Proponi modifica" per inviare ulteriori dati.
