53

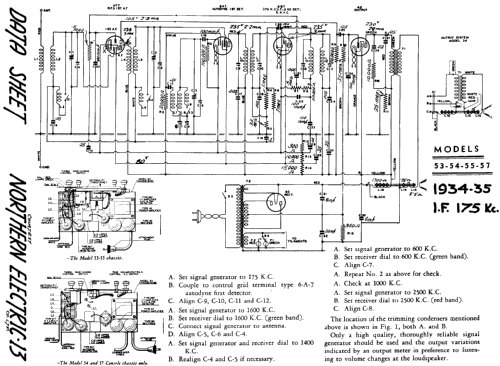

53 ; Northern Electric Co (ID = 765853) Radio
53 ; Northern Electric Co (ID = 1178882) Radio
Use red slider bar for more.
53 ; Northern Electric Co (ID = 1178882) Radio
Northern Electric Co: 53 [Radio] ID = 1178882 933x714
Select picture or schematic to display from thumbnails on the right and click for download.
For model 53, Northern Electric Co. Ltd.; Canada

Country:  Canada
Manufacturer / Brand:  Northern Electric Co. Ltd.; Canada
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6F7 6A7 6B7 42 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 53 - Northern Electric Co. Ltd.;
Circuit diagram reference Radio College of Canada
Literature/Schematics (1) Northern Electric Page 13

Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
