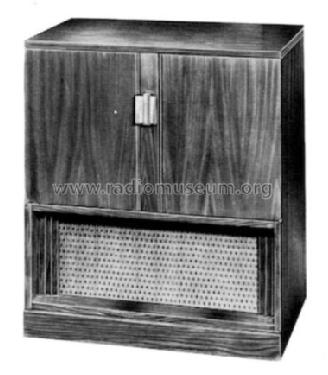

Northern Electric Co: 6903 [Radio] ID = 2264035 380x434
Select picture or schematic to display from thumbnails on the right and click for download.
For model 6903, Northern Electric Co. Ltd.; Canada:
From service manual.

Country:  Canada
Manufacturer / Brand:  Northern Electric Co. Ltd.; Canada
Year: 1954 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6BA6 6BE6 6BA6 6AV6 6AS5 6X4
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
Power out 2 W (max.)
from Radiomuseum.org Model: 6903 - Northern Electric Co. Ltd.;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 24 x 30 x 12 inch / 610 x 762 x 305 mm
Notes

Model part of the Canadian Northern Electric radio phonograph console line. Has a built in 3-speed record changer.

Model 6903A, 117V, 60 Hz.
Model 6903B, 117V, 25 Hz.

Literature/Schematics (1) Radio College of Canada (RCC) (1955 Supplement 35)

Model page created by Michel Cormier. See "Data change" for further contributors.
