Electrophone S50

Electrophone S50; Novak also Pontiac; (ID = 887808) R-Player
Use red slider bar for more.
Electrophone S50; Novak also Pontiac; (ID = 887808) R-Player
Select picture or schematic to display from thumbnails on the right and click for download.
Country:  Belgium
Manufacturer / Brand:  Novak (also Pontiac); Bruxelles
Year: 1958 ?? Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: 12AX7 EL84 EL84 EZ80
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 127; 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Model: Electrophone S50 - Novak also Pontiac; Bruxelles
Shape Tablemodel, with any shape - general.
Notes Stereo version with balance regulator (L/R)and 2 extra tweeters per channel.

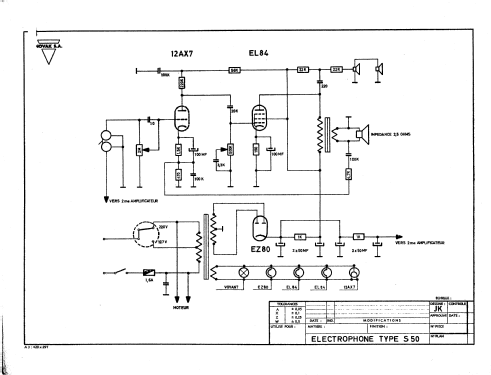

Source of data -- Schematic

Model page created by Dirk Bladt. See "Data change" for further contributors.
