Phono-Radio Pontiac 565
Use red slider bar for more.
Novak also Pontiac;: Phono-Radio Pontiac 565 [Radio] ID = 1703363 933x1077
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1955 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: ECH42 EF41 EBC41 EL41 | ||||
|---|---|---|---|---|---|
| Semiconductors (the count is only for transistors) | Selen |
| Main principle | Superheterodyne (common); 2 AF stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | Changer (Record changer) |
| Power type and voltage | Alternating Current supply (AC) |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | |
| from Radiomuseum.org | Model: Phono-Radio Pontiac 565 - Novak also Pontiac; Bruxelles |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 500 x 320 x 510 mm / 19.7 x 12.6 x 20.1 inch |
| Notes | The unit contains a 3-speed record changer from Collaro, probably type RC54.
|
| Price in first year of sale | 5'750.00 BEF |

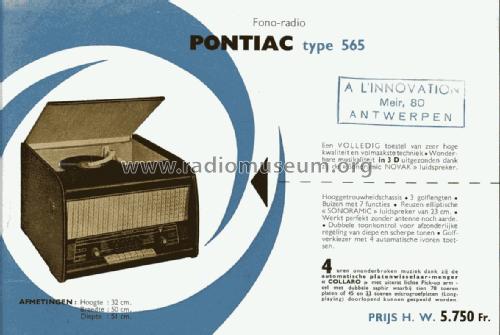

| Mentioned in | -- Original prospect or advert |
Model page created by a member from A. See "Data change" for further contributors.
