Pontiac 551ZM

Pontiac 551ZM; Novak also Pontiac; (ID = 95645) Radio Pontiac 551ZM; Novak also Pontiac; (ID = 95646) Radio
Pontiac 551ZM; Novak also Pontiac; (ID = 95647) Radio Pontiac 551ZM; Novak also Pontiac; (ID = 95648) Radio
Pontiac 551ZM; Novak also Pontiac; (ID = 1315373) Radio Pontiac 551ZM; Novak also Pontiac; (ID = 1784529) Radio
Pontiac 551ZM; Novak also Pontiac; (ID = 2288408) Radio
Use red slider bar for more.
Pontiac 551ZM; Novak also Pontiac; (ID = 95645) Radio
Novak also Pontiac;: Pontiac 551ZM [Radio] ID = 95645 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pontiac 551ZM, Novak (also Pontiac); Bruxelles

Country:  Belgium
Manufacturer / Brand:  Novak (also Pontiac); Bruxelles
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner

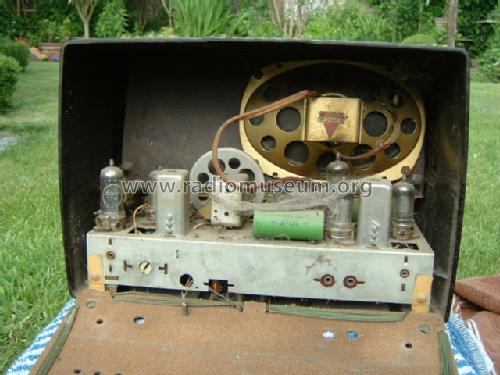

Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-130; 220-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Pontiac 551ZM - Novak also Pontiac; Bruxelles
Material Bakelite case

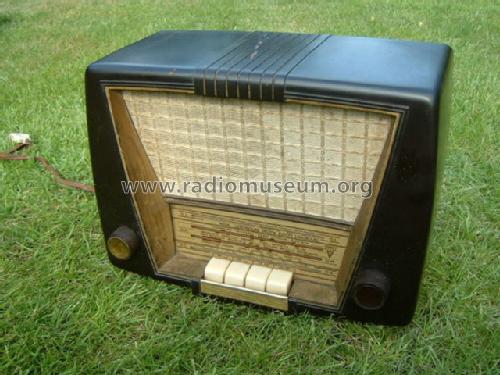

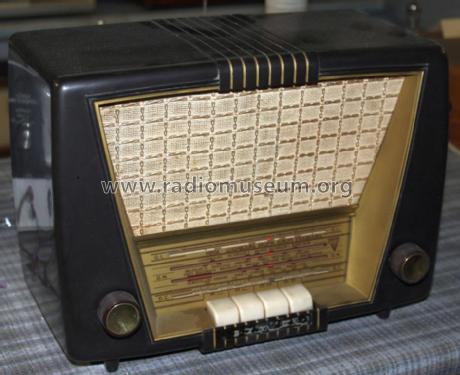

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 340 x 250 x 180 mm / 13.4 x 9.8 x 7.1 inch

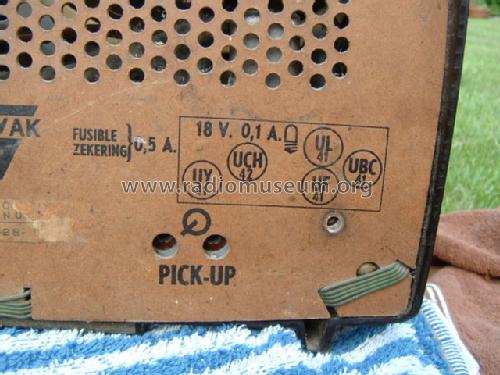

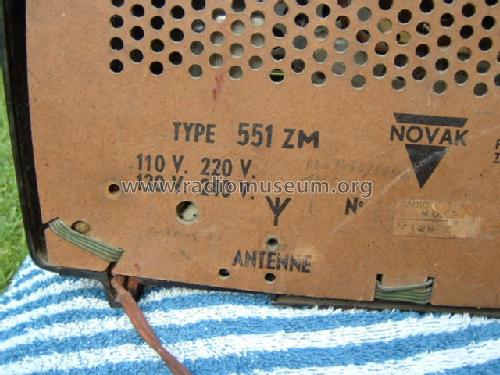

Notes Has a wire antenna in the rear panel. schéma très semblable à celui du NOVAK 551Z, la seule différence se situant au niveau de la partie HF

Model page created by Georges Van Campenhout. See "Data change" for further contributors.
