Senior S694A

Senior S694A; Novak also Pontiac; (ID = 18880) Radio

Senior S694A; Novak also Pontiac; (ID = 18882) Radio
Use red slider bar for more.
Senior S694A; Novak also Pontiac; (ID = 18880) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Belgium
Manufacturer / Brand:  Novak (also Pontiac); Bruxelles
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH21 UF21 UF21 UBL21 UM4 UY1
Main principle Superheterodyne (common); ZF/IF 480 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out
from Radiomuseum.org Model: Senior S694A - Novak also Pontiac; Bruxelles
Material Wooden case
Dimensions (WHD) 510 x 320 x 240 mm / 20.1 x 12.6 x 9.4 inch
Price in first year of sale 585.00 SFR
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.

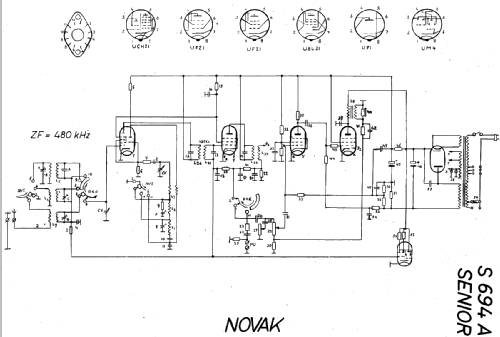

Literature/Schematics (1) -- Schematic


All listed radios etc. from Novak (also Pontiac); Bruxelles
Here you find 280 models, 193 with images and 147 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
