For model Professional Resistor-Condensor Tester 112, National Radio Institute (NRI); Washington, DC:

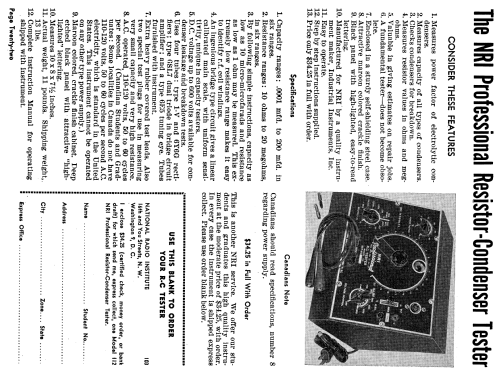

From Oct-Nov 1948 NRI National Radio News.

Country:  United States of America (USA)
Manufacturer / Brand:  National Radio Institute (NRI); Washington, DC
Year: 1947 ? Category: Service- or Lab Equipment
Valves / Tubes 4: 6SL7 6E5 1-V 6Y6G
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Professional Resistor-Condensor Tester 112 - National Radio Institute NRI;
Material Metal case
Shape Tablemodel, slant panel.
Dimensions (WHD) 10 x 8.5 x 7 inch / 254 x 216 x 178 mm
Notes

Capacitance/Resistance & Leakage Tester.

  • Six capacitor ranges: 100pF to 200uF
  • Six resitance ranges: 10 Ohms to 20 Mega Ohms.
  • Capacitance as low as 10pF and resistance as low as 1 Ohm can be estimated.
  • DC leakage test 600V

Maroon crackle finish cabinet. Heavy rubber test leads and two special connectors for low value  capacitors and resistors. Linear scale.

Advertised in Oct-Nov 1948 NRI National Radio News.

6SL7 is bridge amplifier.

Net weight (2.2 lb = 1 kg) 11 lb (11 lb 0 oz) / 4.994 kg
Price in first year of sale 34.25 USD

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
