• Country
• Belgium

• Manufacturer / Brand
• NSF (Nederlandsche Seintoestellen Fabriek); Leuven

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 210378

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

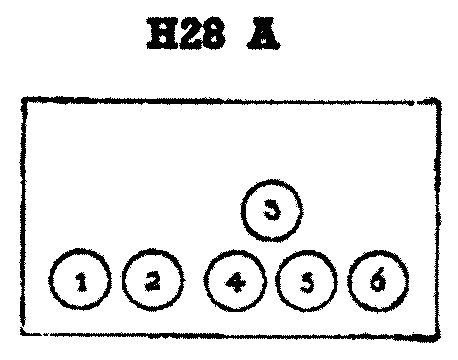

• AK1 AF2 AB1 E446 E443H 1823

• Main principle
• Superheterodyne (common); ZF/IF 104 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Aristona H28A - NSF Nederlandsche

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 370 x 410 x 215 mm / 14.6 x 16.1 x 8.5 inch

• Notes
• Loudspeaker nr. 4281.

• Net weight (2.2 lb = 1 kg)
• 9.9 kg / 21 lb 12.9 oz (21.806 lb)

• Mentioned in
• NSF-Koerier, December 1941

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
