• Country
• Belgium

• Manufacturer / Brand
• NSF (Nederlandsche Seintoestellen Fabriek); Leuven

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 209956

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EK2 EF5 EBC3 EL3 EM1 EZ3

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 24 cm = 9.4 inch

• Material
• Wooden case

• from Radiomuseum.org

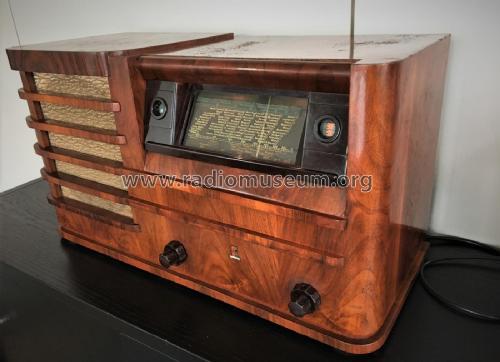

• Model: Aristona H67U - NSF Nederlandsche

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 660 x 360 x 290 mm / 26 x 14.2 x 11.4 inch

• Notes

• For DC operation a vibrator block (code number 28.891.82)  is used. Loudspeaker nr.9604.

  The dimensions mentioned in "NSF-Koerier, December 1941" (wxhxd = 55x43x27 cm) are obviously erroneous.

• Net weight (2.2 lb = 1 kg)
• 17.8 kg / 39 lb 3.3 oz (39.207 lb)

• Mentioned in
• NSF-Koerier, December 1941

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
