• Country
• Netherlands

• Manufacturer / Brand
• NSF Nederlandsche Seintoestellen Fabriek, Hilversum

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94975

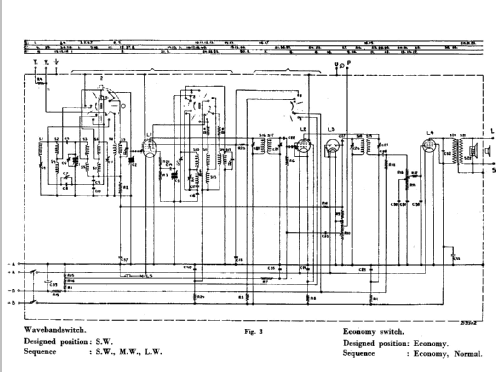

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• KCH1 KF4 KB2 KL5

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries / 2 & 144 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: H112B - NSF Nederlandsche

• Notes
• Chassis same as Philips 631B.

• Price in first year of sale
• 108.00 Hfl

• Source of data
• Technisch- Commercieel - Radio Vademecum Staleman

• Author
• Model page created by John Koster. See "Data change" for further contributors.
