• Country
• Netherlands

• Manufacturer / Brand
• NSF Nederlandsche Seintoestellen Fabriek, Hilversum

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94665

• Number of Tubes
• 8

• Valves / Tubes
• EF22 ECH21 EF22 ECH21 EM4 EBL21 EBL21 AZ4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 32 cm = 12.6 inch

• Power out
• 8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

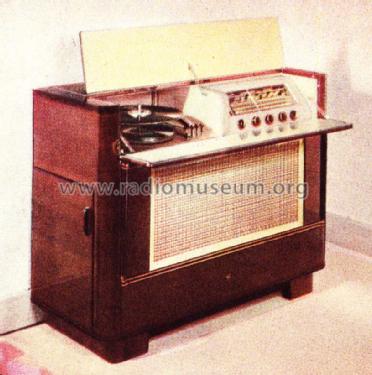

• Model: H242A - NSF Nederlandsche

• Shape
• Console: Chairside Radio.

• Dimensions (WHD)
• 1040 x 810 x 460 mm / 40.9 x 31.9 x 18.1 inch

• Price in first year of sale
• 23,950.00 BFR

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.

• Other Models

• Here you find 166 models, 120 with images and 94 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
