• Country
• Netherlands

• Manufacturer / Brand
• NSF Nederlandsche Seintoestellen Fabriek, Hilversum

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 95812

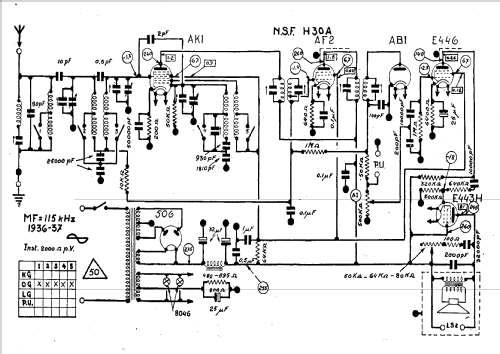

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• AK1 AF2 AB1 E446 E443H 506 or 1823

• Main principle
• Superheterodyne (common); ZF/IF 115 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

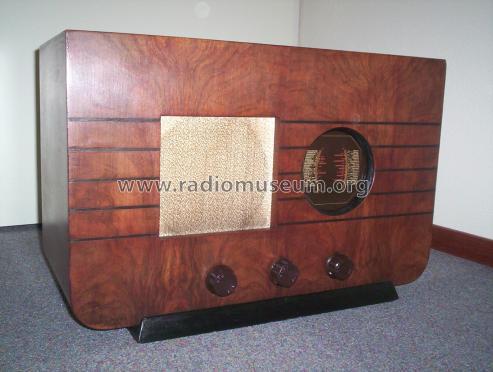

• Model: H30A - NSF Nederlandsche

• Shape
• Tablemodel, low profile (big size).

• Notes
• Like Philips 581A. Dial lamp: 8046 (6V/0,5A).

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by John Koster. See "Data change" for further contributors.
