• Year
  • 1939/1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 94921

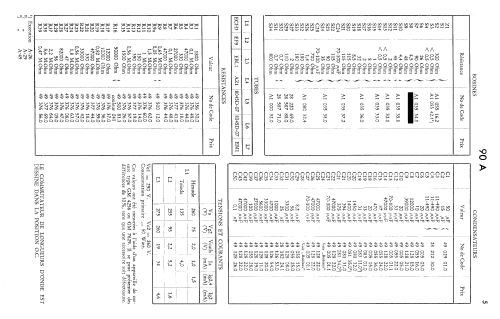

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 128 kHz; 1 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: H90A, H90A -20 - NSF Nederlandsche
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 490 x 320 x 240 mm / 19.3 x 12.6 x 9.4 inch
  • Notes
  • 3 Band reception:
    • LW: 708 - 2000 m.
    • BC: 175 - 585 m.
    • SW: 13,8 - 51 m.
    Tuning scale light bulbs type: 8045D (6,3V, 320mA).
    Loudspeaker Philips type 9648. Connectors for second loudspeaker and for pick-up.

    This model is comparable with Mediator M90ASFR-Radiola RA90AMullard MAS90Rektra_RA90Philips 480A.

    The technical manual mentions a variant -20 for the Belgian market. Since it is not known where this variant was produced (Eindhoven or Leuven), it is mentioned for both factories.
  • Net weight (2.2 lb = 1 kg)
  • 7.8 kg / 17 lb 2.9 oz (17.181 lb)
  • Price in first year of sale
  • 92.00 Hfl
  • Literature/Schematics (1)
  • -- Original-techn. papers. (Generic model 90A by Philips dated 1939)
  • Author
  • Model page created by John Koster. See "Data change" for further contributors.
