• Country
• Germany

• Manufacturer / Brand
• Oceanic, (deutsche Marke)

• Year
• 1967/1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 157630

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• 2SA440 2SA440 2SA321 2SA321 2SA321 2SB186 2SB186 2SB187 2SD187 1S188 1S188

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

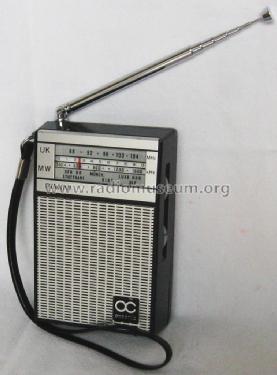

• Model: Rimini - Oceanic, deutsche Marke

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 70 x 110 x 35 mm / 2.8 x 4.3 x 1.4 inch

• Notes

• Eingebaute Ferritantenne, Teleskopantenne. Lautsprecher 60 Ohm.

  Gehäuse in verschiedenen Farben lieferbar: anthrazit, blau, rot.

  Siehe auch Regina mit gleichem Chassis, aber unterschiedlichem Gehäuse.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Ottmar Lauth. See "Data change" for further contributors.
