• Year
  • 1946/1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 151599

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / AC/DC 105-125 / 9 & 90 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: 6-606-A - Olympic Radio & Television,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

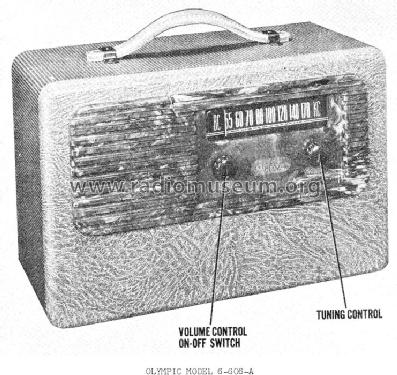

  • The Olympic 6-606-A is an Three Power Portable Superheterodyne Receiver - Self Contained Loop Antenna.
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
