Six Transistor PTR-62B

Six Transistor PTR-62B; Omegas; brand? where (ID = 2499562) Radio Six Transistor PTR-62B; Omegas; brand? where (ID = 2499565) Radio
Six Transistor PTR-62B; Omegas; brand? where (ID = 2499563) Radio Six Transistor PTR-62B; Omegas; brand? where (ID = 2499564) Radio
Six Transistor PTR-62B; Omegas; brand? where (ID = 1404161) Radio Six Transistor PTR-62B; Omegas; brand? where (ID = 1404163) Radio
Six Transistor PTR-62B; Omegas; brand? where (ID = 849738) Radio Six Transistor PTR-62B; Omegas; brand? where (ID = 849741) Radio
Six Transistor PTR-62B; Omegas; brand? where (ID = 849740) Radio
Use red slider bar for more.
Six Transistor PTR-62B; Omegas; brand? where (ID = 2499562) Radio

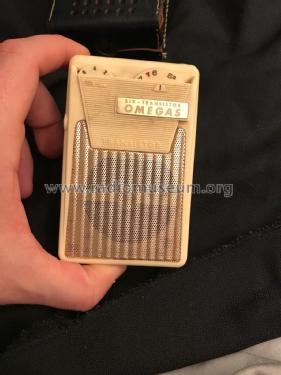

Omegas; brand? where: Six Transistor PTR-62B [Radio] ID = 2499562 1200x1600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Six Transistor PTR-62B, Omegas; (brand? where?):
ebay.com_184213736396 seller oldchicagoestates

Country:  Japan
Manufacturer / Brand:  Omegas; (brand? where?)
Year: 1963 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SA354 2SA12 2SA12 2SB75 2SB77 2SB77
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
Power out
from Radiomuseum.org Model: Six Transistor PTR-62B - Omegas; brand? where?
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 2.75 x 4.25 x 1.25 inch / 70 x 108 x 32 mm
Notes

The model PTR-62B may be found even with different brands such as Candle and Universal.

Net weight (2.2 lb = 1 kg) 0.5 lb (0 lb 8 oz) / 0.227 kg
Source of data - - Data from my own collection

Model page created by Tom Guest. See "Data change" for further contributors.



All listed radios etc. from Omegas; (brand? where?)
Here you find 6 models, 6 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
