66

66; OMGS, O.M.G.S; where (ID = 1040237) Radio
66; OMGS, O.M.G.S; where (ID = 1040233) Radio 66; OMGS, O.M.G.S; where (ID = 1040234) Radio
66; OMGS, O.M.G.S; where (ID = 1040235) Radio 66; OMGS, O.M.G.S; where (ID = 1160042) Radio
Use red slider bar for more.
66; OMGS, O.M.G.S; where (ID = 1040233) Radio
OMGS, O.M.G.S; where: 66 [Radio] ID = 1040233 933x699
Select picture or schematic to display from thumbnails on the right and click for download.

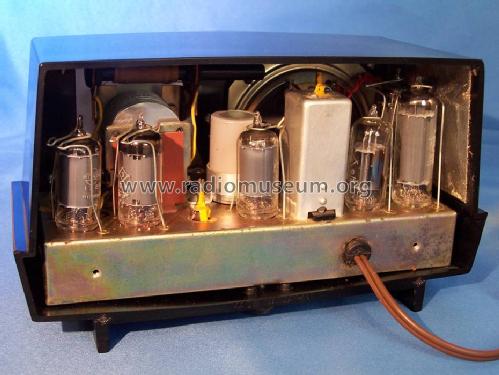

For model 66, OMGS, O.M.G.S; (where?)

Country:  Japan
Manufacturer / Brand:  OMGS, O.M.G.S; (where?)
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12BA6 12BE6 12BA6 12AV6 35C5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: 66 - OMGS, O.M.G.S; where?
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 8 x 4.5 x 3.5 inch / 203 x 114 x 89 mm

Model page created by Flavio Chavez. See "Data change" for further contributors.



All listed radios etc. from OMGS, O.M.G.S; (where?)
Here you find 26 models, 21 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
