- Country
- France
- Manufacturer / Brand
- Ondia (Le Matériel); Boulogne-sur-Mer, Paris
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 37546
-
- alternative name: Le Matériel Ondia - see Ondia
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; Reflex
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 150; 220; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org

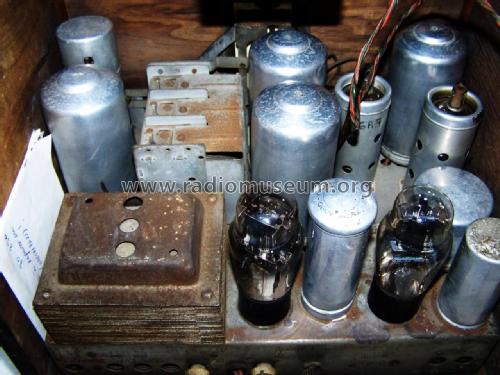

- Model: 107 - Ondia Le Matériel; Boulogne-
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 335 x 445 x 245 mm / 13.2 x 17.5 x 9.6 inch
- Notes
-
Étage amplificateur HF accordé, montage réflex en BF. Antifading non retardé.
- Net weight (2.2 lb = 1 kg)
- 11.5 kg / 25 lb 5.3 oz (25.33 lb)
- External source of data
- Serge Laffont/Martin Renoth
- Mentioned in
- Schémathèque Toute la Radio (STR) (No. 158)
