- Country
- Spain
- Manufacturer / Brand
- Ondina (Radio Eléctrica Solé S.A); Barcelona
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 236309
-
- alternative name: FEARE (Fabricación Española Aparatos Radio Electricidad)
ebay 2012 item 150969331963
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- Power out
- 3 W (undistorted)
- Material
- Bakelite case
- from Radiomuseum.org

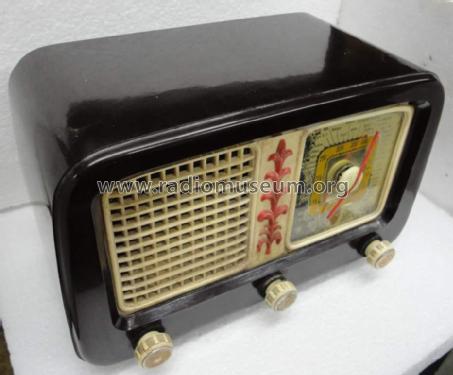

- Model: R-145 - Ondina Radio Eléctrica Solé S.
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 240 x 140 x 100 mm / 9.4 x 5.5 x 3.9 inch
- Author
- Model page created by Juan José Pla Zambudio. See "Data change" for further contributors.
