R-185

R-185; Ondina Radio (ID = 1679223) Radio R-185; Ondina Radio (ID = 1679224) Radio

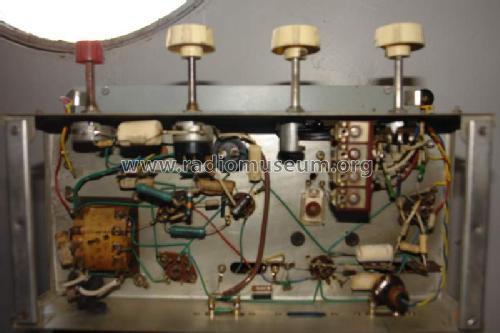

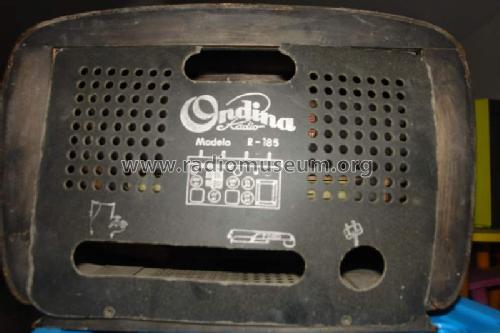

R-185; Ondina Radio (ID = 1679225) Radio R-185; Ondina Radio (ID = 1679226) Radio

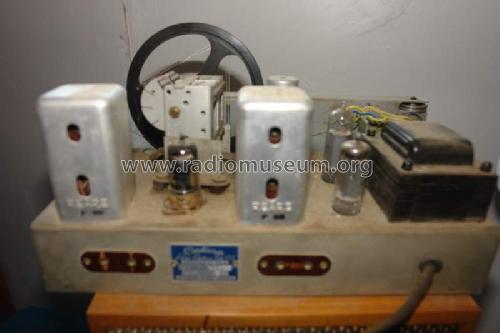

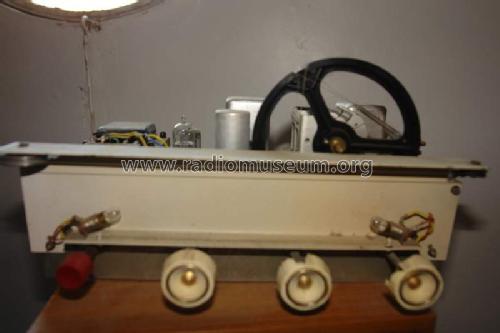

R-185; Ondina Radio (ID = 1679227) Radio R-185; Ondina Radio (ID = 1679228) Radio
Use red slider bar for more.
R-185; Ondina Radio (ID = 1679223) Radio
Ondina Radio: R-185 [Radio] ID = 1679223 800x533
Select picture or schematic to display from thumbnails on the right and click for download.
For model R-185, Ondina (Radio Eléctrica Solé S.A); Barcelona

Country:  Spain
Manufacturer / Brand:  Ondina (Radio Eléctrica Solé S.A); Barcelona
alternative name

FEARE (Fabricación Española Aparatos Radio Electricidad)
Year: 1955 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EF41 EBC41 EL84 EZ80
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 4 W (max.)
from Radiomuseum.org Model: R-185 - Ondina Radio Eléctrica Solé S.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 400 x 210 x 200 mm / 15.7 x 8.3 x 7.9 inch
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)

Model page created by Juan Almagro-Lopez. See "Data change" for further contributors.
