Saint Germain ; Optalix, T.E.D.; (ID = 640135) Radio

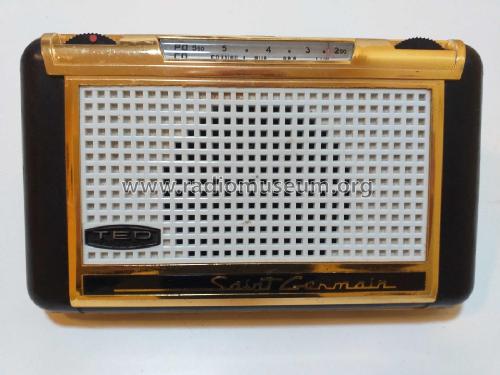

Optalix, T.E.D.;: Saint Germain [Radio] ID = 640135 933x561
Select picture or schematic to display from thumbnails on the right and click for download.
For model Saint Germain, Optalix, T.E.D.; Amiens, Paris, Aubervilliers

Country:  France
Manufacturer / Brand:  Optalix, T.E.D.; Amiens, Paris, Aubervilliers
alternative name

TED, Technique et Décoration
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: SFT320 SFT307 SFT306 SFT352 SFT322 SFT322 SFD107
Main principle Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.18 W (unknown quality)
from Radiomuseum.org Model: Saint Germain - Optalix, T.E.D.; Amiens, Paris
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 160 x 98 x 27 mm / 6.3 x 3.9 x 1.1 inch
Notes Vendu sous la marque TED (Technique Et Decoration).
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Mentioned in Revue toute la Radio . N° 268 Septembre 1962

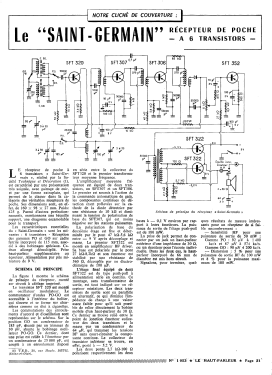

Literature/Schematics (1) - - Manufacturers Literature

Model page created by Raymond Gradelle. See "Data change" for further contributors.
