TO3180

TO3180; Optalix, T.E.D.; (ID = 1731114) Radio
Use red slider bar for more.

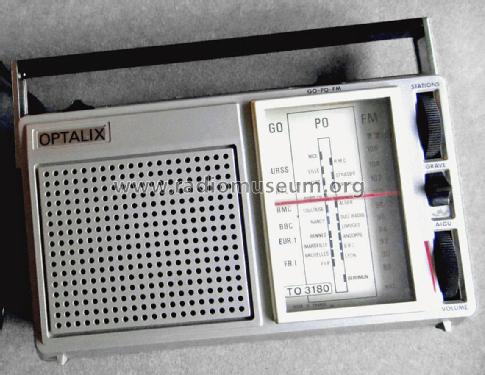

TO3180; Optalix, T.E.D.; (ID = 1731114) Radio
Optalix, T.E.D.;: TO3180 [Radio] ID = 1731114 1145x885
Select picture or schematic to display from thumbnails on the right and click for download.
For model TO3180, Optalix, T.E.D.; Amiens, Paris, Aubervilliers

Country:  France
Manufacturer / Brand:  Optalix, T.E.D.; Amiens, Paris, Aubervilliers
alternative name

TED, Technique et Décoration
Year: 1983 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: TO3180 - Optalix, T.E.D.; Amiens, Paris
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 245 x 140 x 60 mm / 9.6 x 5.5 x 2.4 inch
Notes

Bloc secteur intégré, commutateur graves/aigus.

Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)
Mentioned in Le grand livre de la TSF (Doctsf Ref 26663)

Model page created by Wolfgang Grafeneder. See "Data change" for further contributors.
